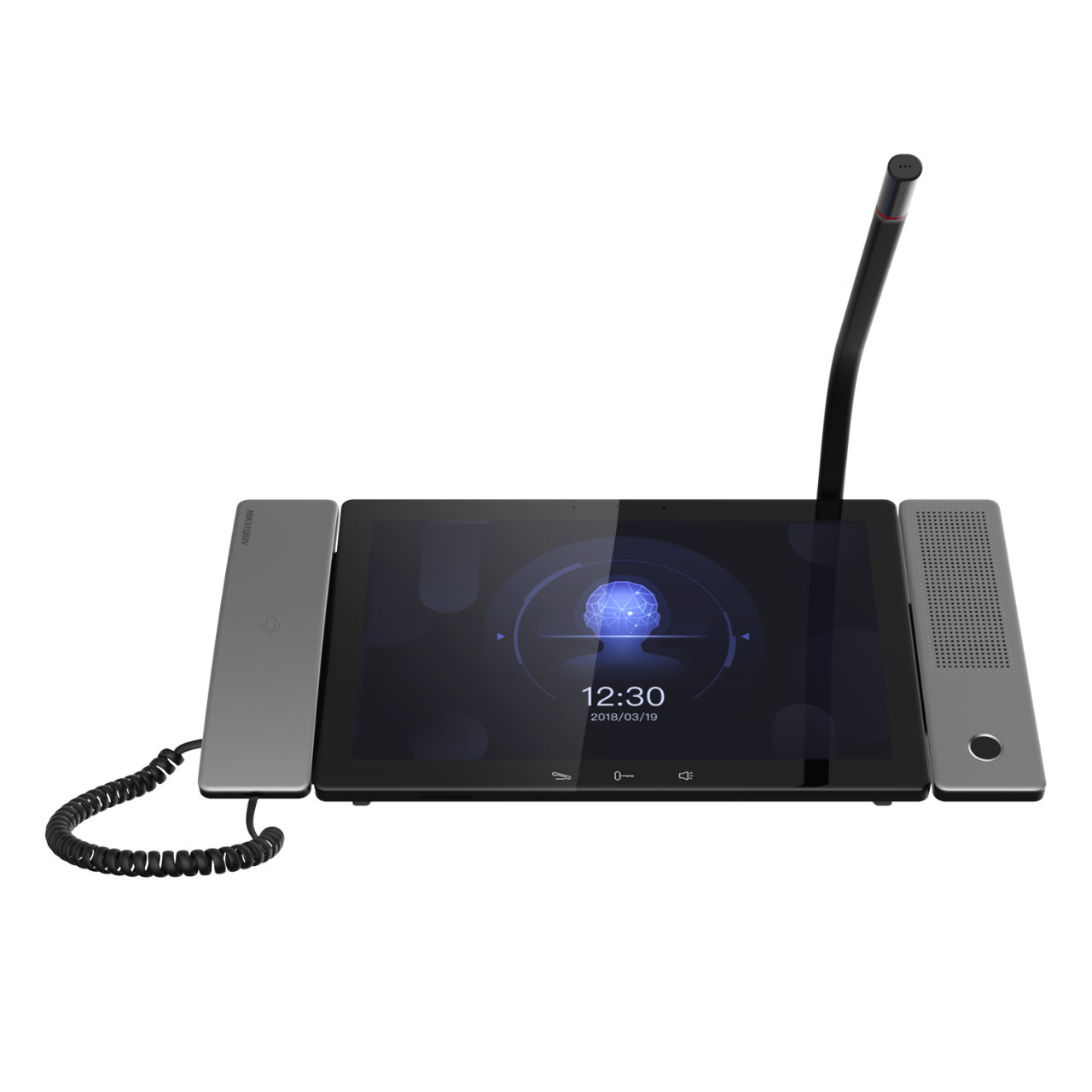

DS-KM9503
10 inch Touch Android IP Main Station
- 10.1-inch IPS touch screen with resolution: 1280 × 800
- Up to 128 network cameras can be added to the device
- Built-in SIP private server, up to 10000 video intercom devices can be added
- Supports more than 2 speakers and microphones: Connects to external earphone (3.5mm), external goose neck microphone
- Displays operation pages via HDMI
- Power supply: standard PoE & 12 VDC
- Video intercom and access control functions
Технические параметры
Available modelsDS-KM9503
Подсерия9 Series Main Stations
Тип системыIP
ПрименениеВилла, Квартира, Коммерческое
RS-4851 (reserved)
WeightWithout package: 1.285 kgWith package: 2.305 kg
LanguageEnglish, French, Portuguese (Europe), Spanish (Europe), Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Lithuanian, Estonian, Latvian, Norwegian, Greek, Danish
Indicator3
Разрешение2 MP
WDR/
Dimensions292 mm × 166 mm × 31 mm (11.5" × 6.5" × 1.2")
FOVHorizontal: 64.1°, Vertical: 48.1°, Diagonal: 80.2°
Метод работыCapacitive touch screen
TypeIPS
Wired network2 10/100/1000 M self-adaptive Ethernet
Lock control2 relay output (reserved)
TAMPER0
USB3
Power supplyStandard PoE (LAN1)12 VDC
Protective level/
УстановкаTable mounting & wall mounting
RAM2 GB
ROM8 GB
CPUEmbedded processor
Supplement light/
Audio inputBuilt-in omnidirectional microphone, external speaker, external goose neck microphone, external earphone (3.5 mm)
Audio outputBuilt-in loudspeaker, external speaker, external voice box or earphone (3.5 mm)
Audio compression bitrate64 Kbps
Volume adjustmentAdjustable via software
Notice capacity128
Linked doorphone capacity10000
Communication protocolTCP/IP, SIP, RTSP
3G/4G standard/
Zigbee/
Alarm input2 (reserved)
TF cardMax to 128 G
Battery/
Application environmentIndoor
Power consumption≤ 12 W
