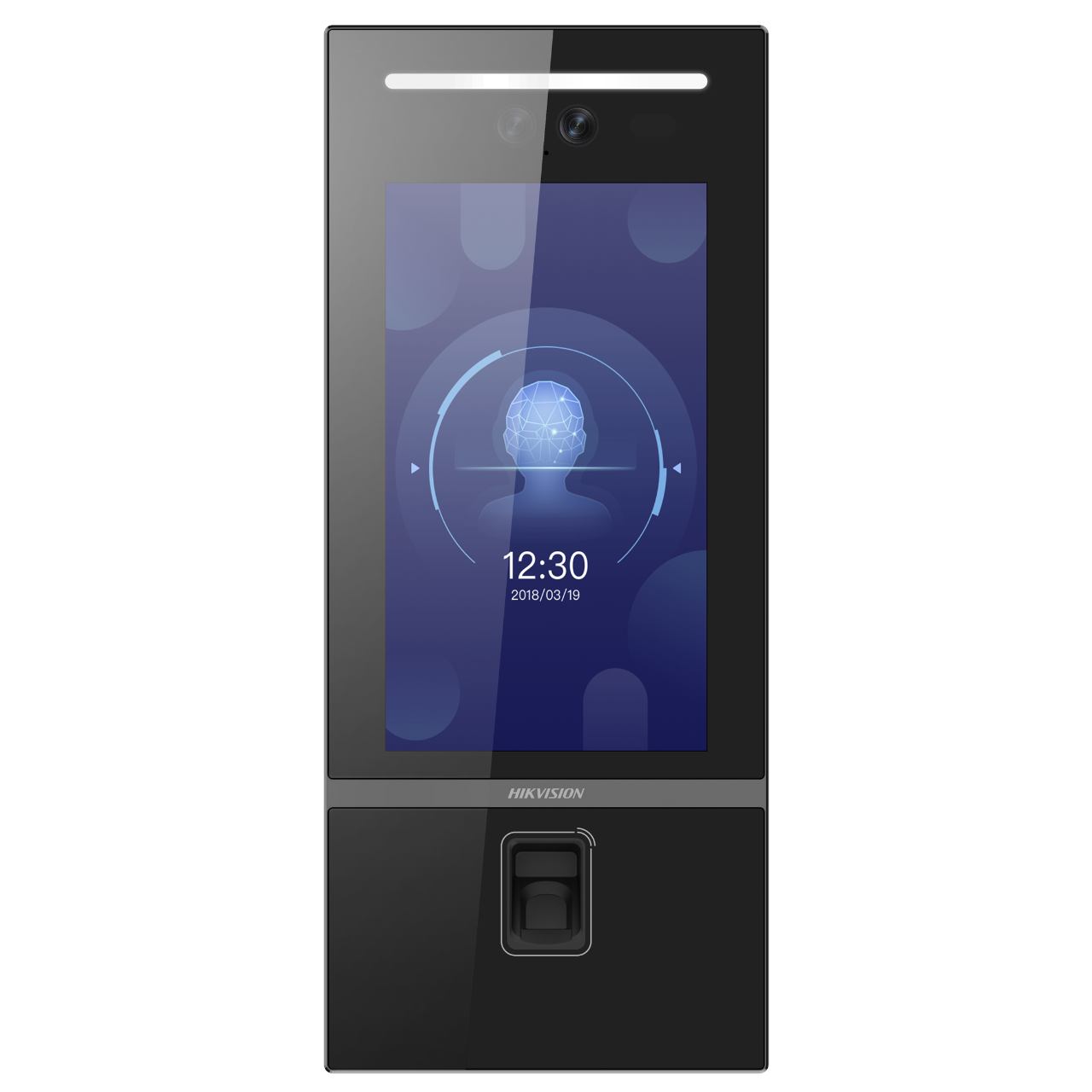

DS-KD9613-FE6
Facial Door Station
- 10-inch capacitive touch screen
- Publishes and displays the image on the screen with resolution: 600 × 1024p
- 2 × 2MP HD camera, ultra-wide angel lens
- Deep learning algorithm: Face anti-sproofing
- Unlocks door by face recognition
- Face capacity: 5000
- Noise suppression and echo cancellation
- Stand-alone operation: Card enrollment, fingerprint adding, and face adding locally
- Protection level: IP65
Технические параметры
Available modelsDS-KD9613-FE6
Подсерия9 Series Door Stations
Тип разблокировкиCard, Exit Button, Face, Fingerprint
Тип системыIP
ПрименениеКвартира, Коммерческое
УстановкаFlush
pa_ingress-protection-level2320
Метод работыСенсорный экран
Weight2.53kg
LanguageEnglish
Разрешение600 × 1024
WDRTrue WDR
Dimensions413mm ×175.2mm × 48.2mm
FOVHorizontal: 108° , Vertical: 59°, Diagonal: 129°
Метод работыPhysical button
Typecolorful LCD
Lens1
Wired network10/100 Mbps self-adaptive Ethernet
Lock control2
Door contact input1
Face capacity5000
Working temperature-30 °C to +60 °C (-22 °F to +140 °F)
Protective levelIP 65
УстановкаFlush mounting
Supplement lightIR supplement
Audio inputBuilt-in omnidirectional microphone
Audio outputBuilt-in loudspeaker
Audio compression bitrate64 Kbps
Volume adjustmentAdjustabel
Communication protocolTCP/IP, RSTP
Battery0
Application environmentOutdoor
Power consumption≤ 18 W
Wi-Fi/
Size10-inch
PixelMain stream : 1920 × 1080Sub stream : 720 × 480
Linked indoor station500
Bluetooth/
Power supply method12 VDC, 2A
Центр загрузки
Firmware Firmware_V2.1.7_221230
