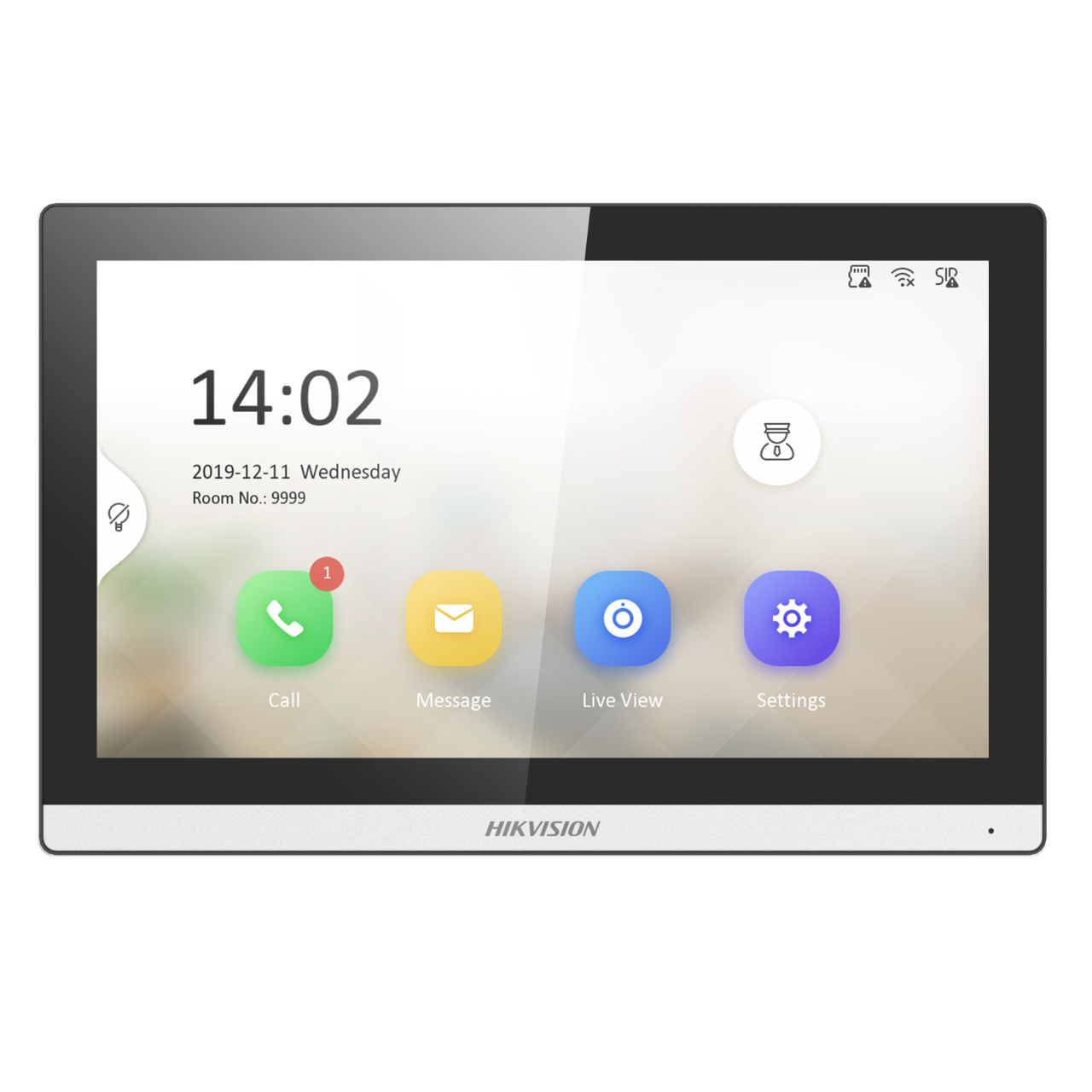

DS-KH6350-TE1
KH6 Series IP-Based Indoor Station
- New UI V2.0: User friendly design
- 7-inch colorful touch screen with resolution 1024 × 600
- Standard PoE
- Stores messages and capture pictures in the TF card
- Remote unlocking via the client software or the mobile client
- Views live videos of door stations and linked cameras
Технические параметры
Available modelsDS-KH6350-TE1
Подсерия6 Series Indoor Stations
Тип системыIP
УстановкаНастенный
Метод работыСенсорный экран
RS-485/
WeightWith package: 675 gWithout package: 350 g
LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak
Indicator0
Разрешение/
WDR/
Dimensions175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83")
FOV/
Метод работыCapacitive touch screen
TypeColorful TFT screen
Lens/
Wired network10/100 Mbps self-adaptive
TAMPER/
USB/
Event capacity200
Working temperature-10 °C to 50 °C (14 °F to 122 °F)
Protective level/
УстановкаWall mounting, table mounting
RAM128 MB
ROM32 MB
CPUEmbedded processor
Audio inputBuilt-in omnidirectional microphone
Audio outputBuilt-in loudspeaker
Audio compression bitrate64 Kbps
Volume adjustmentAdjustable
Notice capacity16
Communication protocolTCP/IP, SIP, RTSP
3G/4G standard/
Zigbee/
Alarm input8-ch alarm inputs
TF cardMax to 128 G
Battery/
Application environmentIndoor
Power consumption≤ 8 W
Alarm output/
Focal length/
Linked indoor extensions capacity5
