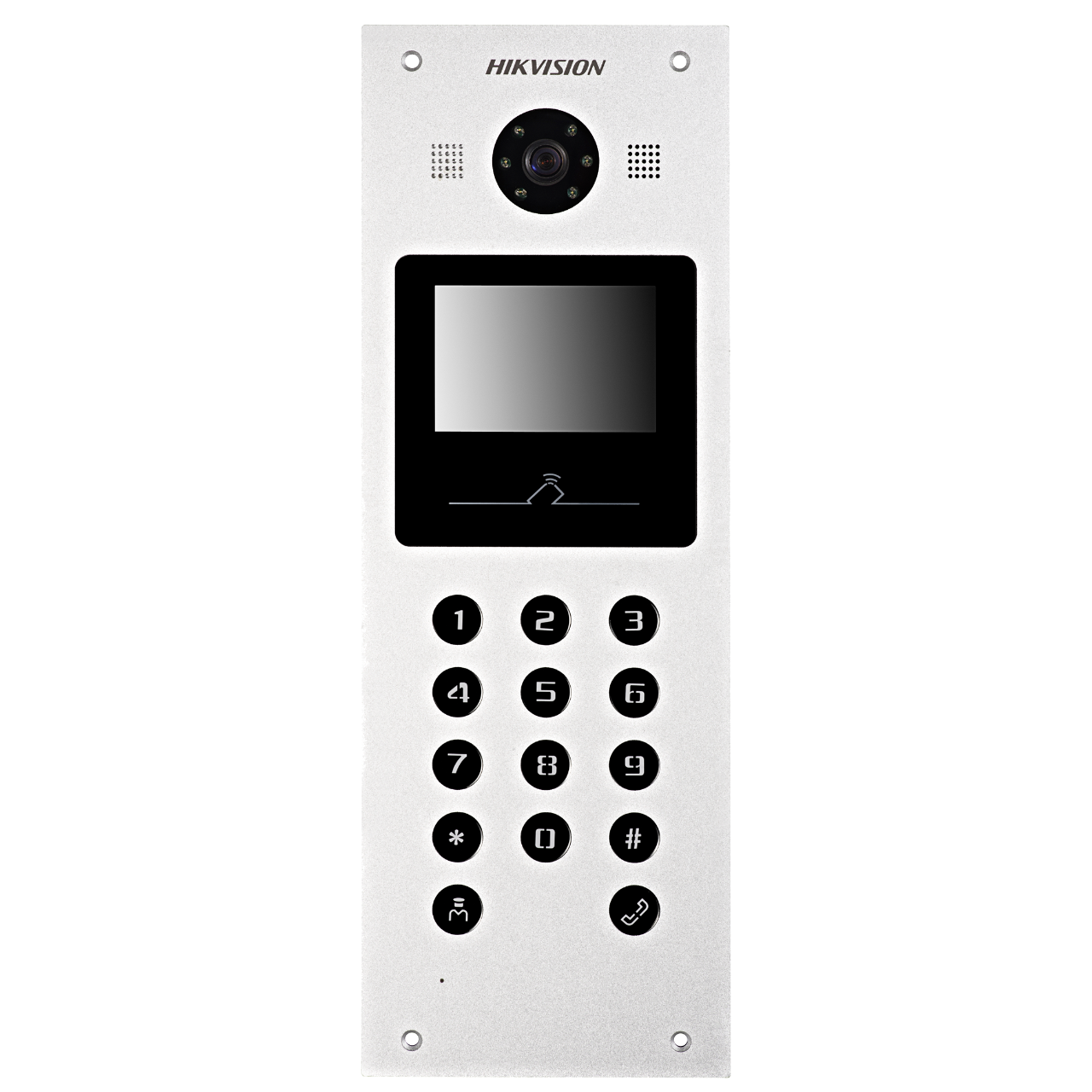

DS-KD3002-VM/Analog
Analog Door Station
- Analog door station
- 1.3 MP colorful camera with visible light supplement
- 3.5-inch Colorful LCD display, Physical Keypad
- 1 RJ45(analog) interface, 1 Ethernet port, Wiegand & RS-485
- Tampering alarm and door magnetic alarm
- 4-ch alarm input,4-ch alarm output
- IP65, 12 VDC. Aluminum Alloy
Технические параметры
Available modelsDS-KD3002-VM
ПодсерияAnalog Door Stations
Тип разблокировкиCard, Exit Button
УстановкаFlush
pa_ingress-protection-level2320
RS-4851 RS-485 Half-Duplex Port
МатериалAluminum Alloy
Разрешение1280 × 720
Wiegand1 Wiegand Port for Accessing Wiegand IC Card Reader
USB1 USB 2.0, Supporting U-Disk
Network Interface1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
Dimensions(L ? W ? H)357 mm × 124 mm × 55 mm (14.1" × 4.9" × 2.2")
CertificationFCC, IC, CE, C-TICK, ROHS, REACH, WEEE
CameraCMOS Low Illumination 1.3 MP HD Colorful Camera
Operation InterfaceLCD Display, Easy Menu
Video Frame RatePAL: 25 fps, NTSC: 30 fps
Audio Compression Rate64 Kbps
Audio Compression StandardG.711 U
Audio QualityNoise Suppression and Echo Cancellation
I/O Output4
I/O Input4
IP Protection LevelIP65
