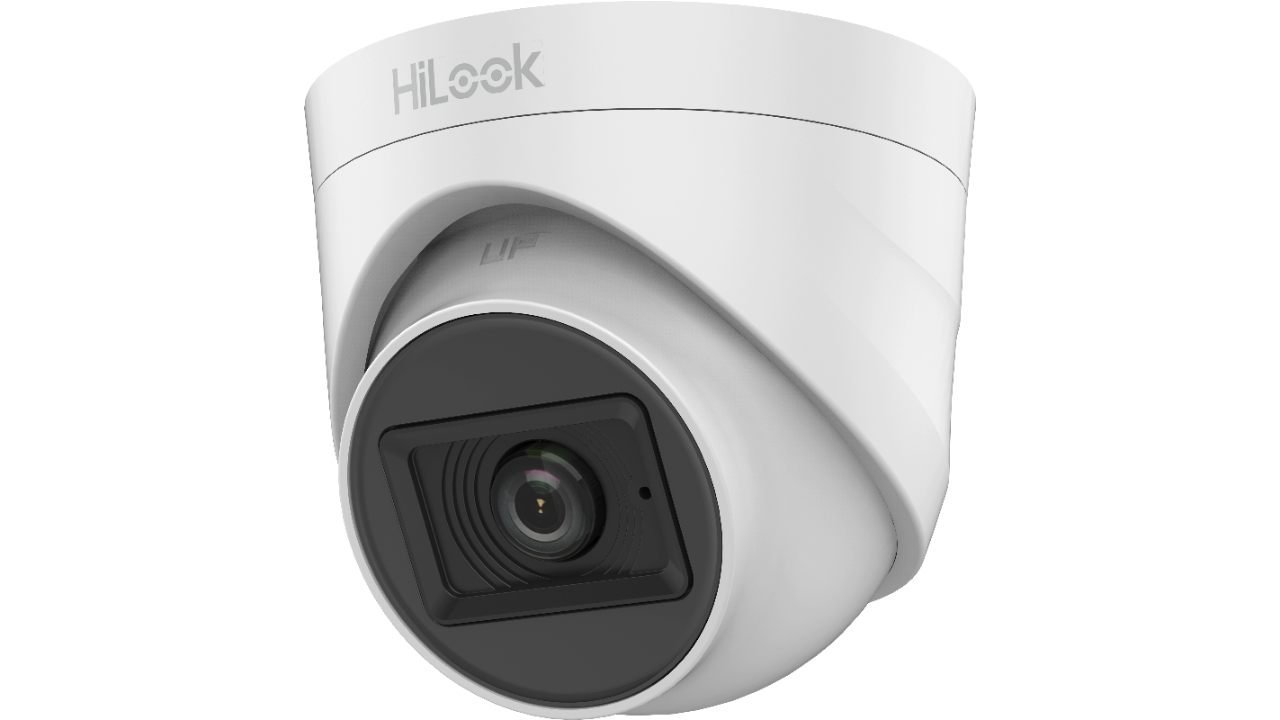

THC-T120-PS
Технические параметры
Available modelsTHC-T120-PS(2.8mm)(HiLook STD), THC-T120-PS(3.6mm)(HiLook STD)
ПодсерияHiLook 1080P Series Camera
Тип корпусаTurret
Разрешение
Тип объективаФиксированный
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
ИК расстояние0-20m
Focal Length & FOV2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
WDRDWDR
Тип объектива2.8 mm, 3.6 mm, 6 mm fixed focal lens
Уровень освещенностиNormal
Iris Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
МатериалПластик
Lens mountM12
Supplement Light RangeIR Distance: up to 20 m
Smart Supplement LightYes
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC
Image SettingsBrightness;Sharpness;Mirror
Power12 VDC ± 25%, max. 2.7 W
МатериалPlastic
DimensionΦ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
WeightApprox. 140.5 g (0.31 lb.)
LanguageEnglish
Day & NightIR Cut Filter
Signal SystemPAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Noise Reduction2D DNR
