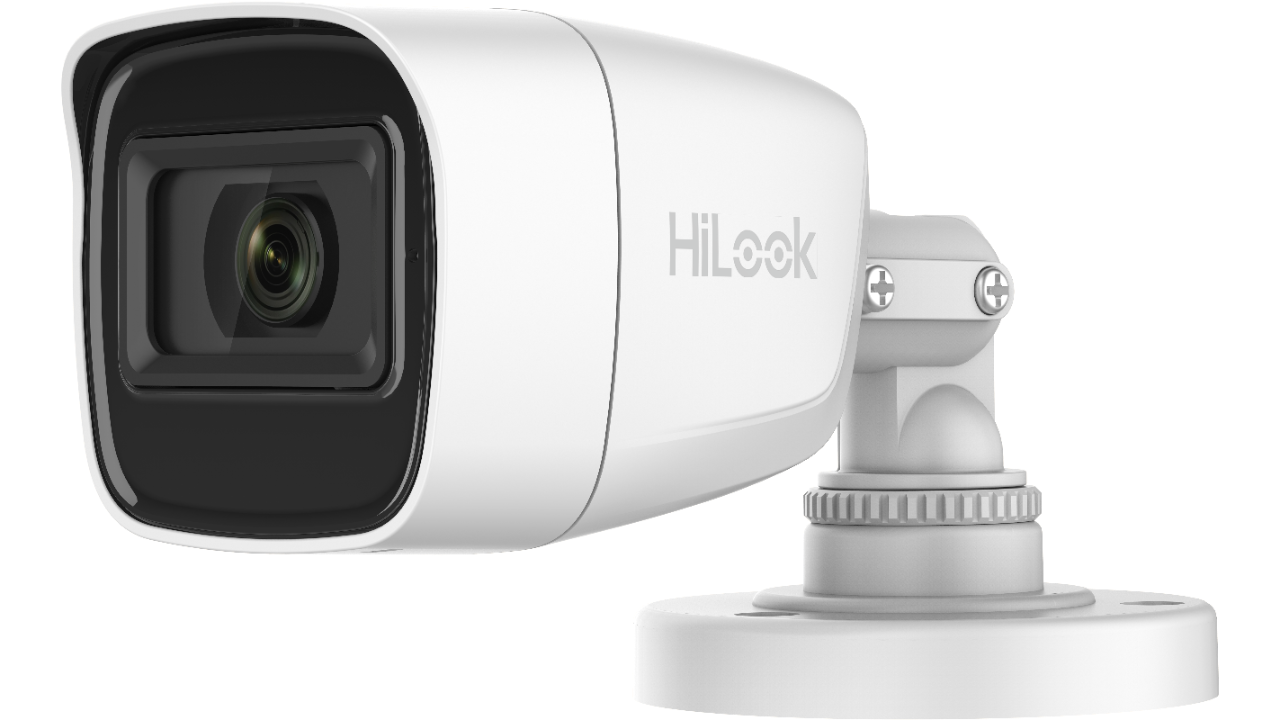

THC-B120-PS
Технические параметры
ПодсерияHiLook 1080P Series Camera
Available modelsTHC-B120-PS(3.6mm)(HiLook STD)
Тип корпусаBullet
Разрешение
Тип объективаФиксированный
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
ИК расстояние21-50m
Focal Length & FOV2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
WDRDWDR
Тип объектива2.8 mm, 3.6 mm, 6 mm fixed lens
Уровень освещенностиNormal
Iris Type2.8 mm, 3.6 mm, 6 mm fixed lens
Уровень защитыIP66
МатериалПластик
Lens mountM12
Supplement Light RangeIR Distance: up to 25 m
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR;BLC;HLC;Global
Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness;Sharpness;Mirror;Smart IR;AGC
Power12 VDC ± 25%, max. 2.7 W
МатериалPlastic
Dimension58 mm × 61 mm × 158.6 mm (2.28" × 2.40" × 6.42")
WeightApprox. 160 g (0.35 lb.)
LanguageEnglish
ProtectionIP66
Day & NightIR Cut Filter
AudioBuilt-in mic
White BalanceAuto/Manual
Signal SystemPAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Noise Reduction2D DNR
КоммуникацияHIKVISION-C
