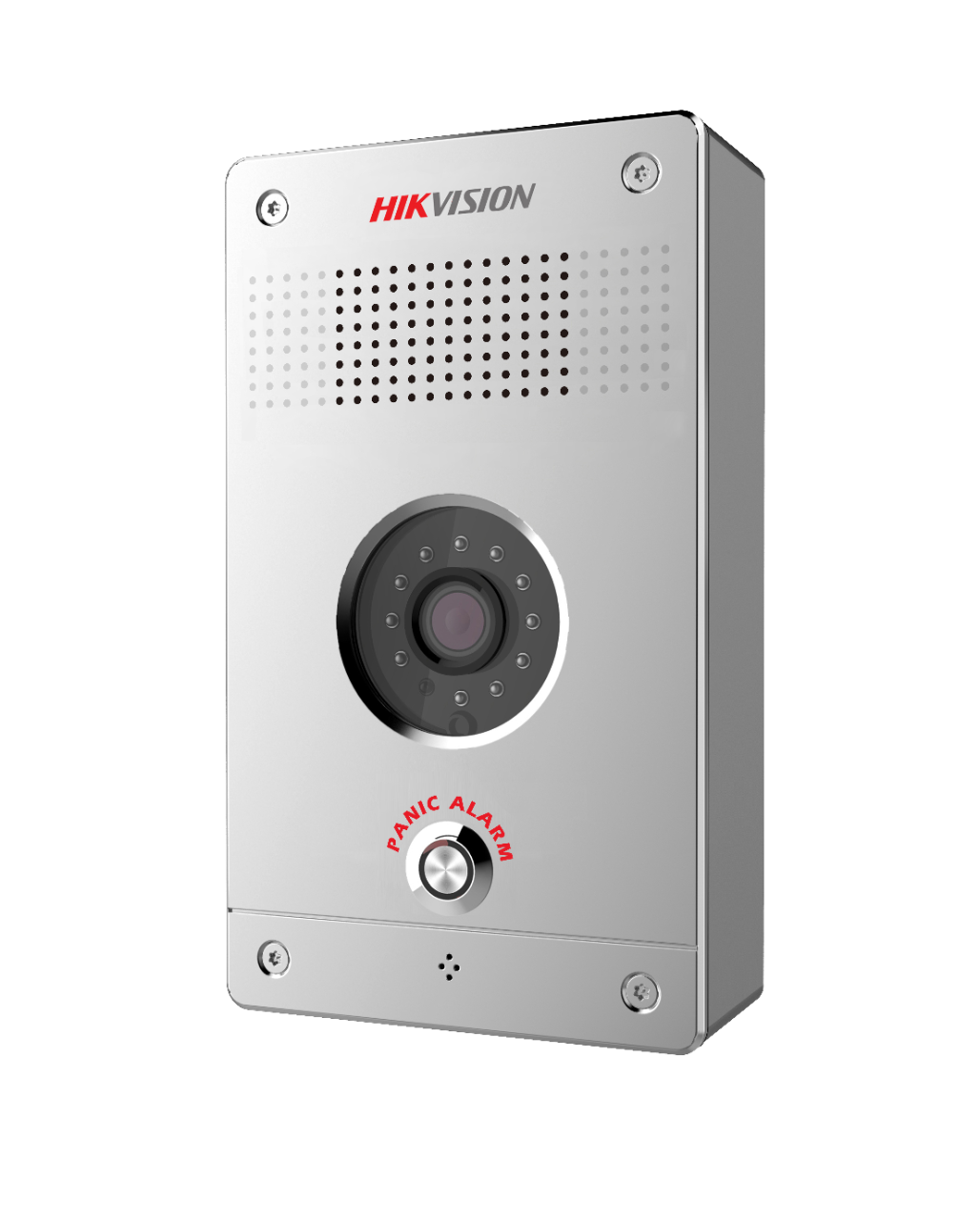

DS-PEA22-F(B)

Video Panic Alarm Panel

Артикул: 1257

Технические параметры

Available modelsDS-PEA22-F(B)

Wired network10 M/100 M Self-adaptive Ethernet port

Power supply12VDC

Audio input1-ch Built-in Omnidirectional Microphone, Pickup Distance: 5 m1-ch 3.5 mm Audio Interface for External Audio Input

Audio output1-ch 30 W Build-in Loudspeaker1-ch 3.5 mm Audio Interface for External Audio Output

Alarm input2

Tamper-Prooftamper alarm

Netowrk interface1RJ45,10 M/100 M/1000 M self adaptive

Dimension(WxHxD)218 mm × 128 mm × 58 mm (8.58" × 5.04" × 2.28")

Alarm output2

ProtocolTCP/IP, RTSP, SNMP, HIK-SIP, Standard SIP, ONVIF

BusRS-485 1, Half-duplex

Frame rate25fps

Intercom1-ch Built-in Omnidirectional Microphone, Pickup Distance: 5 m

PSTN1

Resolusion1920*1080

Day/night switch modeIR Cut Filter

Audio compression code rate16Kbps;64Kbps

Camera2 MP HD IR Camera

Sound pressure110dB, Sound Can be Configured Separately
