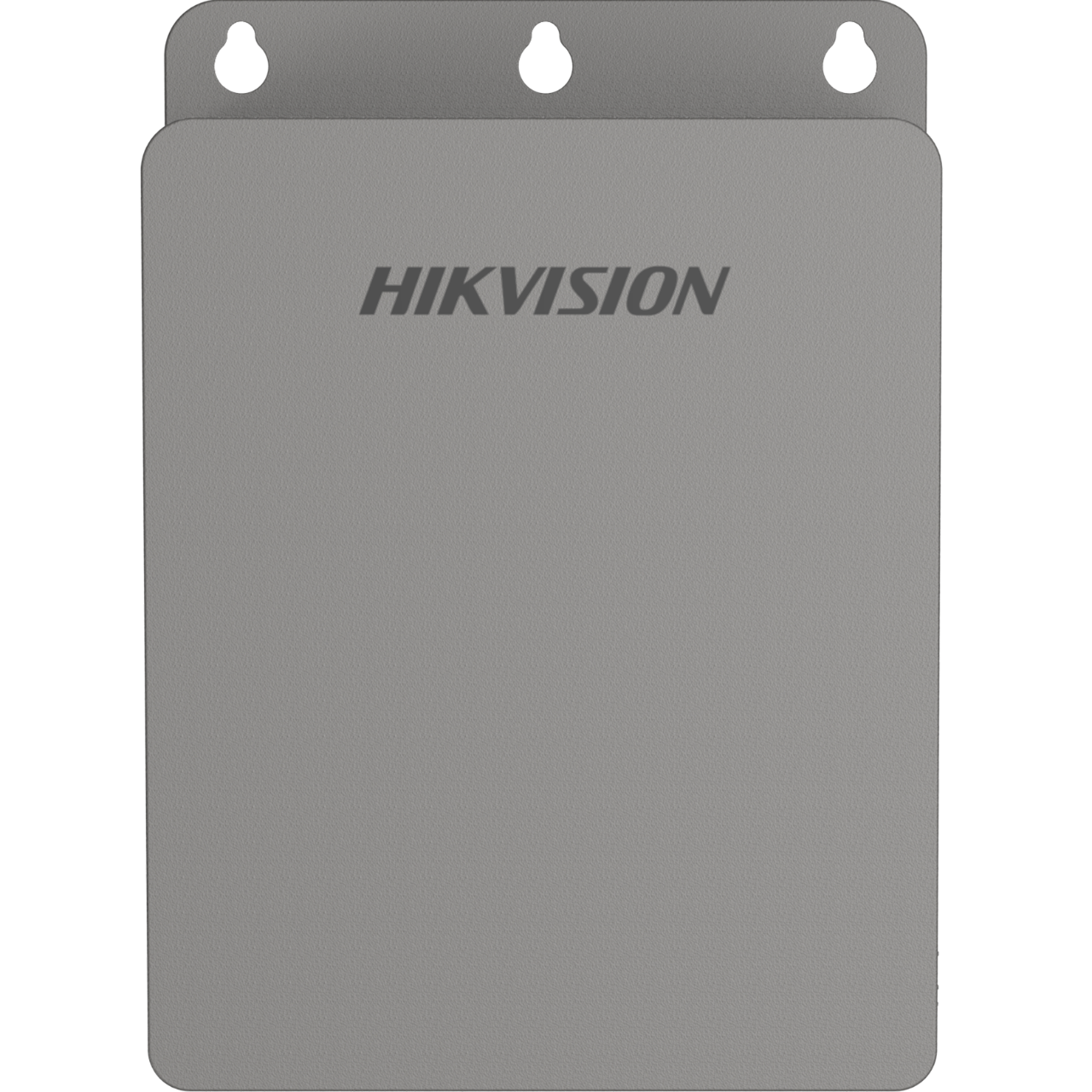

DS-2PA1201-WRD

Waterproof Adapter

12 VDC/1 A power adapter
Over current/short circuit/over voltage/over power protection
Complies with certification standards of information technology products; good EMC performance
Compact size, lightweight & waterproof

Артикул: 1657

Технические параметры

ПодсерияWaterproof Adapter

Available modelsDS-2PA1201-WRD

Dimension156 mm × 114 mm × 44.7 mm (6.14" × 4.49" × 1.76")

Weight190 ± 20 g (0.42 ± 0.04 lb.)

Storage Conditions-40°C to 70°C (-40°F to 158°F), Humidity: 10% to 90% (non-condensing)

Operating Conditions-30°C to 70°C (-22°F to 158°F), Humidity: 5% to 95% (non-condensing)

AppearanceGray

Input170 to 240 VAC, 50 Hz to 60 Hz

Output12 VDC/1 A

"Ripple & Noise 150 mVp-p"≤150 mVp-p

Mount OptionDesktop/Wall Mount
