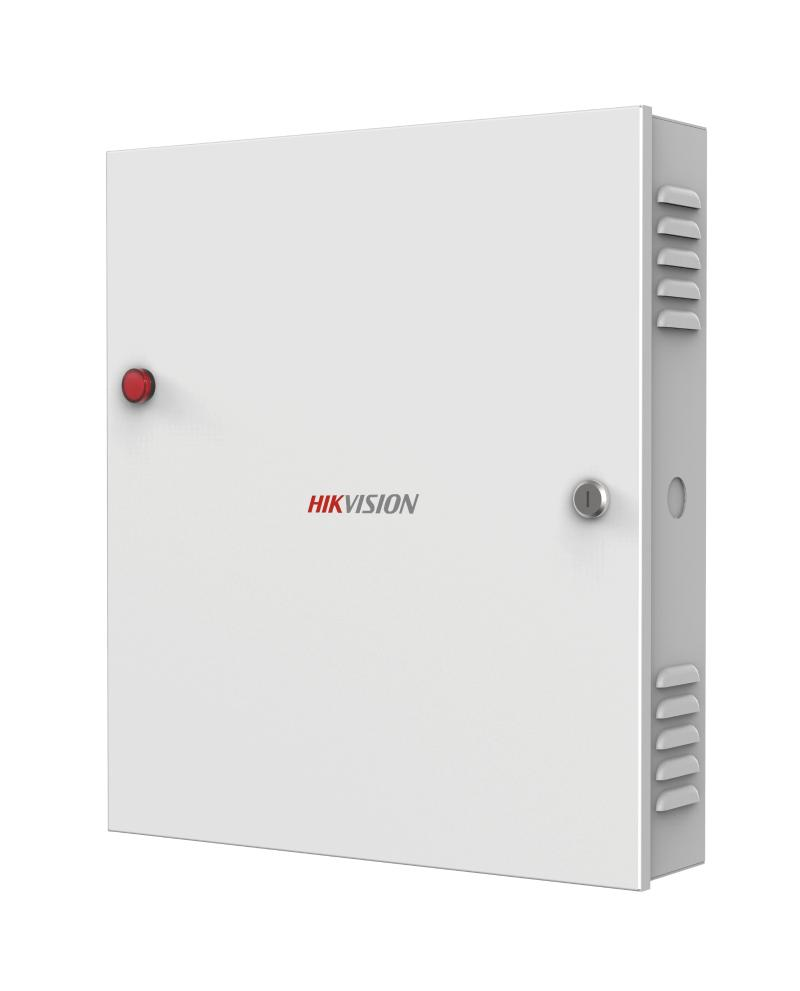

DS-K2601-G
Pro Series Access Controller
- 100,000 cards and 300,000 events storage
- Communication via TCP/TP, ISUP5.0 and RS-485
- ISAPI, OSDP supported
- 1 door access control
- Alarm input/output and alarm event upload
- RS-485 interface and Wiegand interface for accessing card reader
- UL294 Standard Qualified
- Supports battery access
Технические параметры
Available modelsDS-K2601-G
ПодсерияPro Access Controllers
Связь со считывателемRS485, Wiegand 26/34
Кол-во дверей1
Dimensions398 mm × 474 mm × 100 mm (15.7" × 18.7" × 3.9")
Lock control1
Door contact input1
TAMPER1
Power supply12 VDC/1 A
Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
Alarm input4
Power consumption≤ 4 w (without load)≤ 50 w (with load)
Alarm output2
Центр загрузки
Firmware Firmware_V1.0.4_211028
