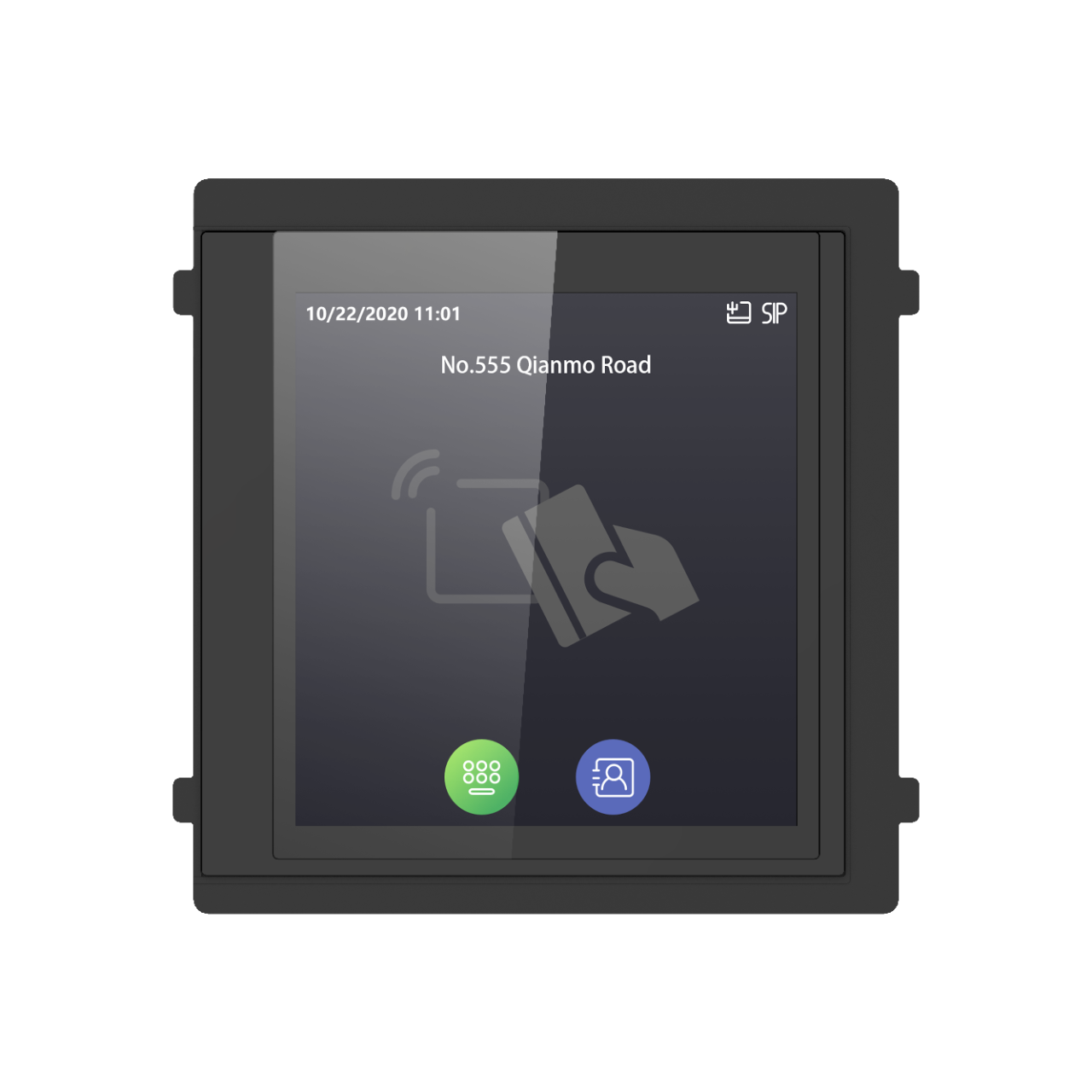

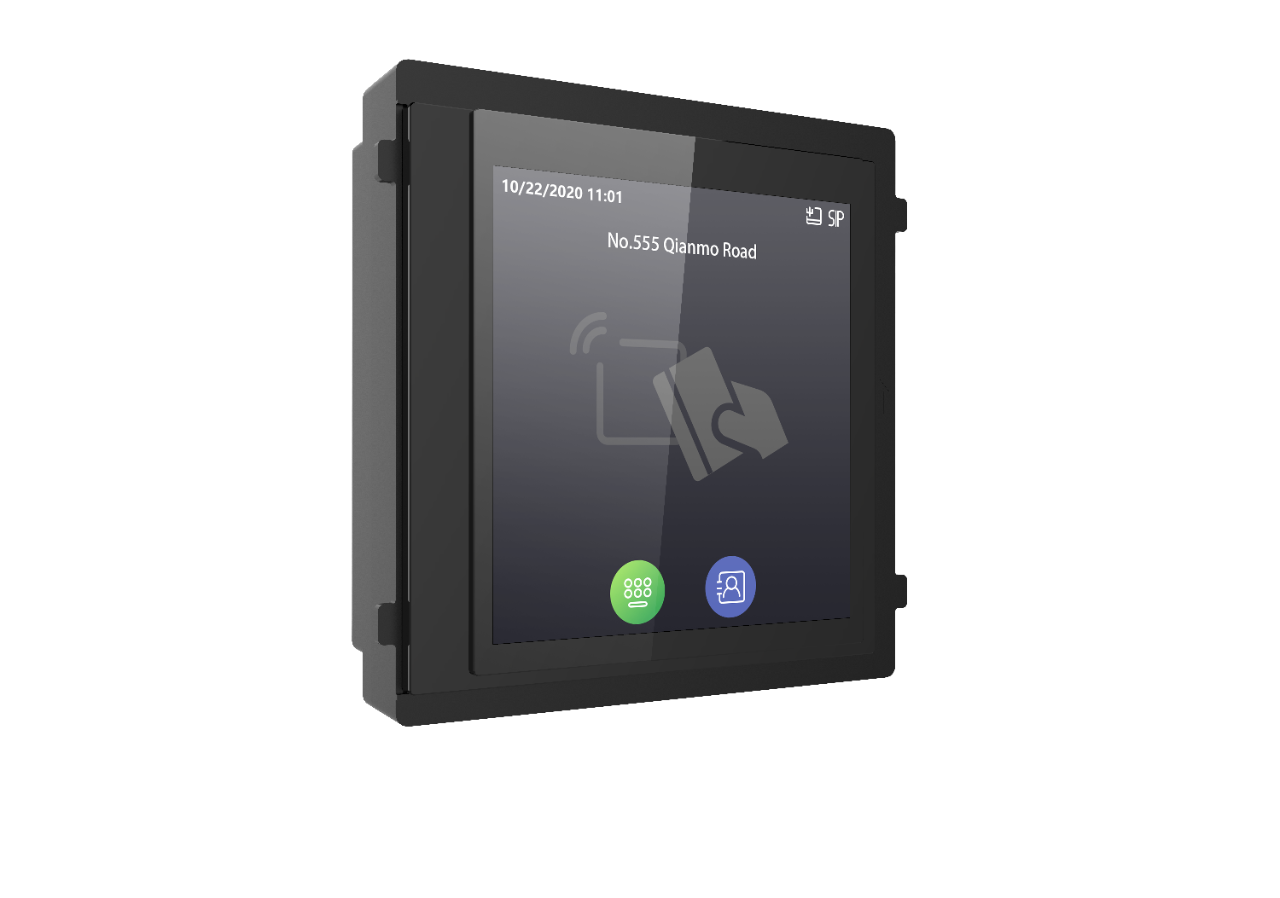

DS-KD-TDE
Technical parameters
Available modelsDS-KD-TDE
Subseries8 Series Modular Door Stations
Unlock TypeCard
System Type2 Wire, IP
ApplicationApartment, Commercial, Villa
pa_ingress-protection-level2320, 2824
Operation methodTouch Screen
LanguageEnglish,French,Portuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek
Resolution480 x 480
Dimensions100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
TypeIPS touch screen
Wired network100 M network interface
Card typeEM card
Card reading frequency125 KHz
Power supply12 VDC, supplied by the main module
Working temperature-20 °C to 60 °C (-4 °F to 140 °F)
Protective levelIP65, IK8
InstallationSurface, flush
RAM128 MB
ROM32 MB
Audio input/
Audio outputBuzzer
Audio compression bitrate/
Volume adjustment/
TF cardReserved
Power consumption≤ 4 W
Brightness500 cd/m2
DIP switch8 bits
Wireless networkOnly AP mode
Power output/
Cascade interface2
