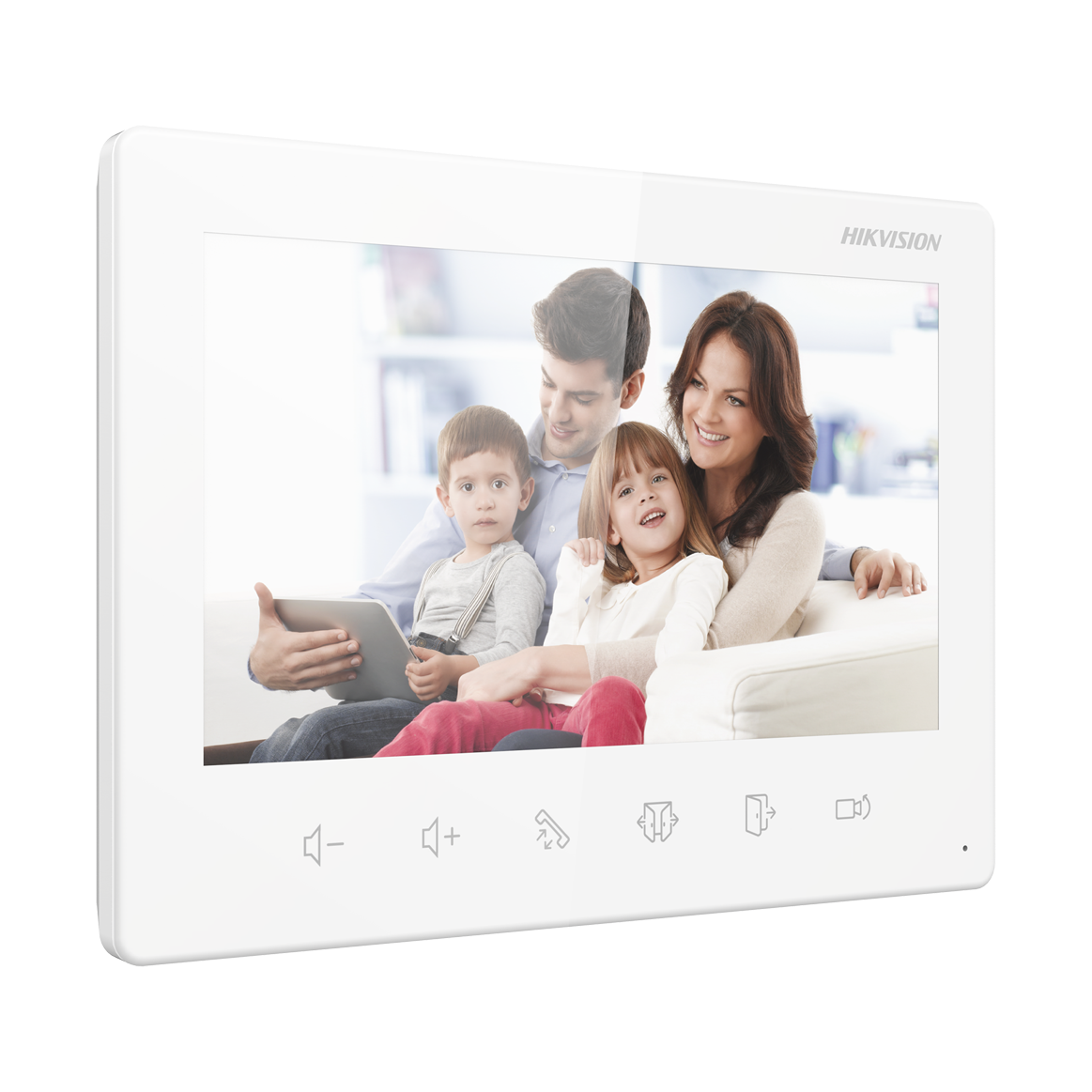

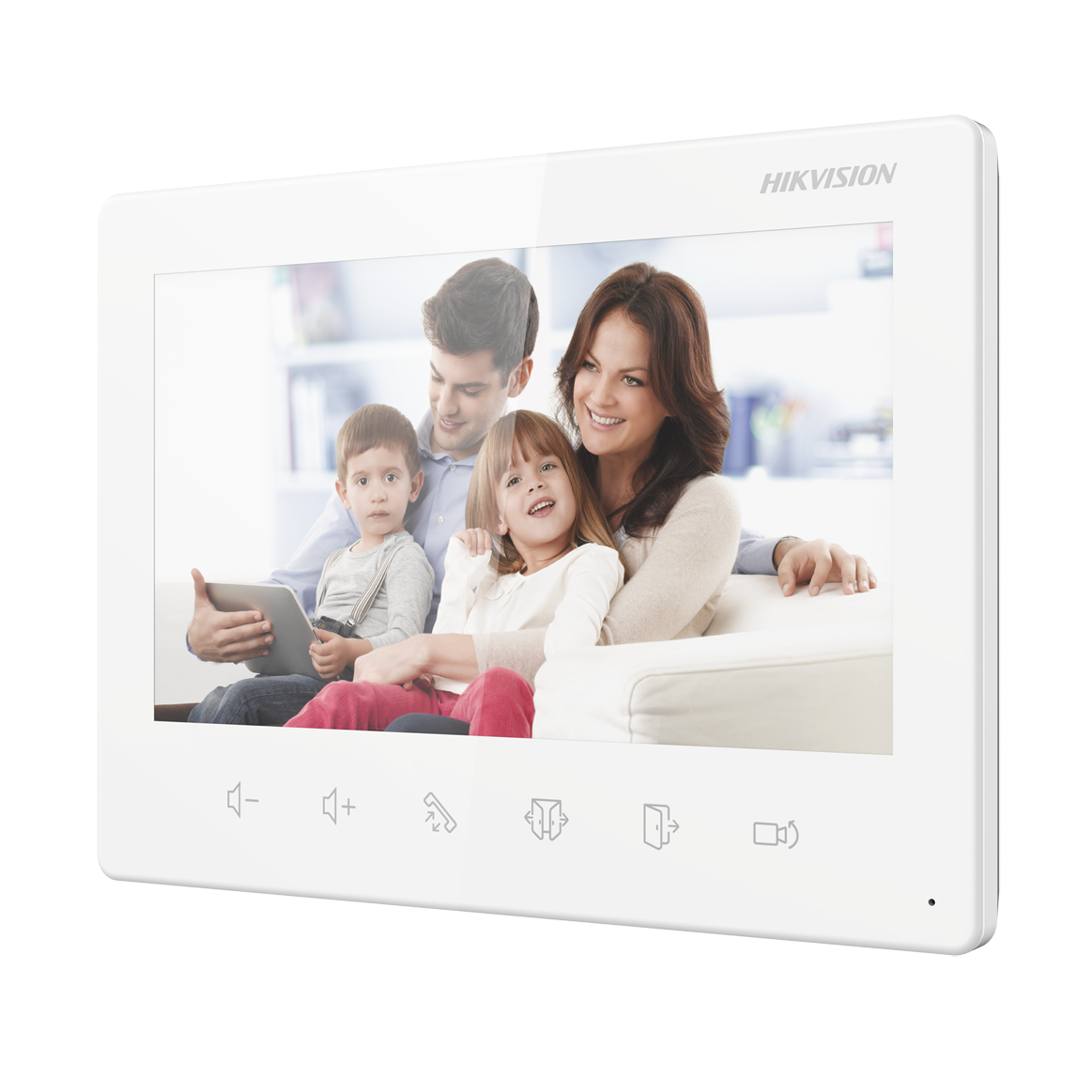

DS-KH1200
Technical parameters
Available modelsDS-KH1200
Subseries2 Wire Analog Series for Villa
System Type2 Wire
ApplicationApartment, Commercial, Villa
RS-485/
WeightWith package: 874.4 gWithout package: 334.6 g
Indicator/
Resolution/
WDR/
Dimensions187 mm × 137 mm × 25.4 mm (7.36" × 5.39" × 1.00")
FOV/
Operation methodNon-touch
TypeTFT screen
Lens/
Wired network/
TAMPER/
USB/
Power supply/
Working temperature-10 °C to 50 °C (14 °F to 122 °F)
Protective level/
InstallationSurface mounting
RAM/
ROM/
CPU/
Audio inputBuilt-in omnidirectional microphone
Audio outputBuilt-in loudspeaker (more than 80 dB within 20 cm)
Audio compression bitrate/
Volume adjustmentAdjustable with touch buttons
Notice capacity/
Linked doorphone capacity2
Communication protocol/
3G/4G standard/
Zigbee/
Alarm input/
TF card/
Battery/
Application environmentIndoor
Power consumption≤ 5 W
Alarm output/
Linked network camera capacity1
Focal length/
Power supply method/
DIP switch2, ring duration can be set via DIP switch
Linked indoor extensions capacity2
