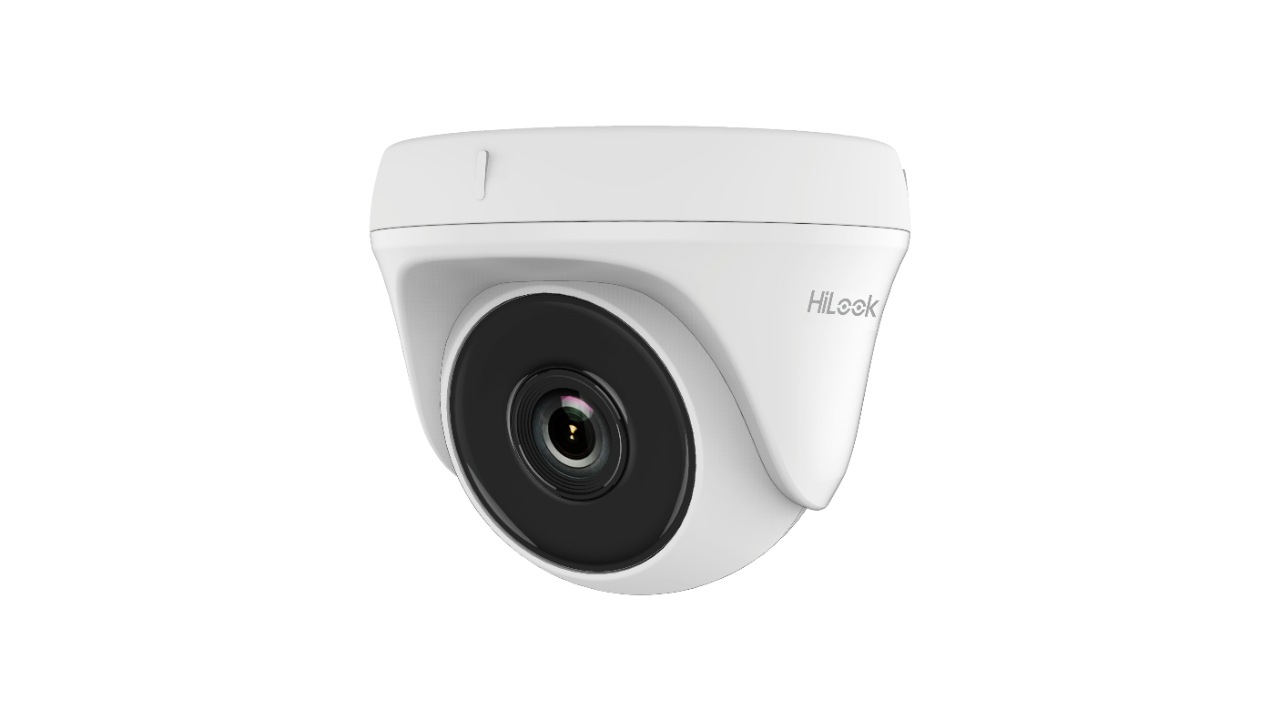

THC-T120-P
Technical parameters
Available modelsTHC-T120-P(2.8mm)(HiLook STD), THC-T120-P(3.6mm)(HiLook STD)
SubseriesHiLook 1080P Series Camera
Case TypeTurret
Resolution
Lens TypeFixed Lens
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
IR Distance0-20m, 21-50m
Focal Length & FOV2.8 mm, horizontal FOV: 103 3.6 mm, horizontal FOV: 80.7 6 mm, horizontal FOV: 50.1
WDRDWDR
Lens Type2.8 mm, 3.6 mm and 6 mm fixed focal lens
Illumination LevelNormal
Iris Type2.8 mm, 3.6 mm and 6 mm fixed focal lens
MaterialPlastic
Lens mountM12
Supplement Light TypeIR
Supplement Light RangeUp to 20 m
Image EnhancementBLC;DWDR
Image SettingsBrightness;Sharpness;Mirror;Smart IR;AGC
Power12 VDC ±15%, max. 4 W
MaterialPlastic
DimensionØ 85.4 mm × 76.12 mm ( Ø 3.38" × 2.67")
WeightApprox. 130 g (0.29 lb.)
LanguageEnglish
Day & NightIR Cut Filter
Signal SystemPAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Noise Reduction2D DNR
